Eaton Service Ranger v4.13 Diagnostic Software – Database v8852

Bring transmission and related system diagnostics into the service bay with Eaton Service Ranger v4.13. This listing includes database v8852 and describes functions for supported Roadranger automated products, including fault review, configuration and ECU updates.

📋 Software Specifications

• 🔢 Version: v4.13; database: v8852

• 🌐 Languages: English, French and Spanish; listed for all regions
• 💻 Operating systems: Windows 10 and Windows 11


🚚 Listed System Coverage

• ⚙️ Fuller AutoShift and UltraShift transmissions
• 🚨 Eaton VORAD collision warning systems, including the listed VS-400
• 🛞 Dana Spicer TIMS tire inflation and monitoring system
• 🔋 Eaton hybrid electric transmissions

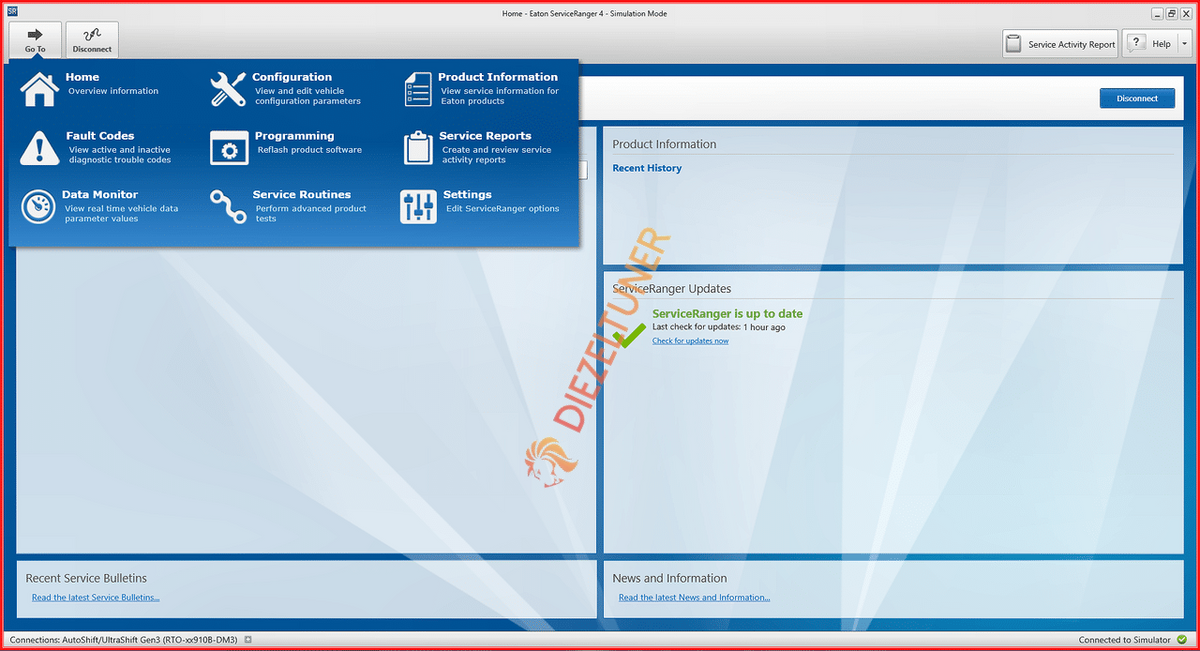

🔧 Diagnostic Functions

• ⚠️ Read and clear available fault codes in real time
• 🎛️ Configure supported parameters and automated products
• 💽 Perform supported ECU reprogramming and updates with suitable hardware
• 🔍 Diagnose supported transmission, VORAD, TIMS and hybrid systems

🔌 Data Link Adapters Listed for ECU Programming

The source listing names the following adapters as tested for Service Ranger. Verify the adapter and connection against your equipment before programming.

• 🔌 Dearborn Group DPA-II Plus
• 🔌 Caterpillar CAT Adapter II
• 🔌 Eaton MD-100, RS-232 connection only, not wireless
• 🔌 Noregon JPRO Data Link Adapter, serial port
• 🔌 NEXIQ MagiKey Parallel Data Module (PDM)

Do not use a wireless adapter for ECU programming. The source listing warns that an unsuitable adapter can damage an ECU and affect warranty coverage.

🔑 Activation & Delivery

• 💻 1 PC (Standard License): activation for one PC or laptop
• 🖥️ 1 PC (Multi-License): license manager tied to one PC, described as able to generate licenses for multiple PCs

• 📥 Digital download link after payment; installation and activation assistance is listed via site chat or phone

Confirm your specific product, adapter and selected license before purchase. Program and configure only systems you own or are authorized to service.
