HPT Editor Tool 2026 – HPT to BIN Converter, CTZ Converter, ECU Editor & Tuning Tool

HPT Editor Tool 2026 – HPT ↔ BIN, CTZ Converter, ECU Editor & Tuning Tool

1 PC install only — activation completed same day after purchase.

Current Version: v3.8.1+

Recent Changelog Highlights

• v3.8.0/3.8.1: Server-only BIN Patcher (embedded patches removed), new Search & Stock Files tabs (11 tabs total), UI refresh (PAT dark/orange theme), XDF catalog path fixes, patch admin redesign.
• v3.7.1: ECU Patcher tab — one-click automated patch pipeline (export → patch → checksum → import → segment swap). New TOOLS tab: Ford VBF to BIN, Cummins XCAL/HEX to BIN, ECFG2XDF (Beta), J1939 DTC Converter. CM2450 HPT↔BIN with 16-byte header separation. GPEC Unlocker finalized. CTZ↔HPT standalone (no HPT file required).
• v3.6.2: Expanded HPT↔CTZ GM TCM module support, XDF Maker (credit-based), in-app support ticket system.
• v3.5.5: Locked CTZ to BIN support (encrypted v13+ CTZ), HPT to BIN export size fix, stability improvements.

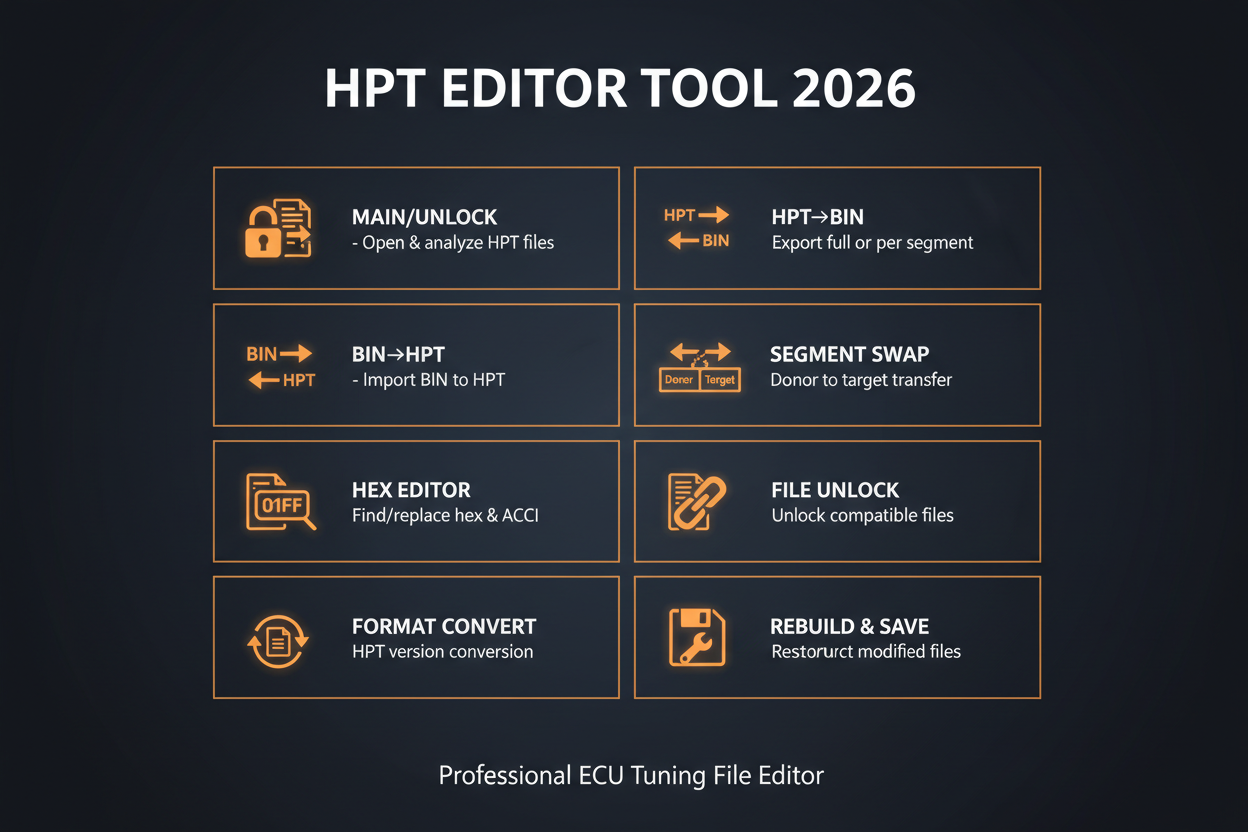

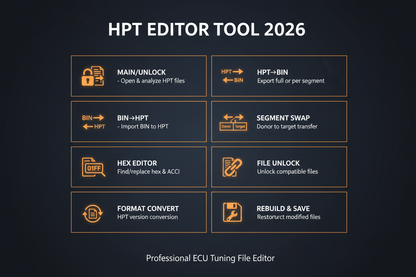

Key Functions

MAIN / Unlock

• Open and analyze .hpt files: segments, OS IDs, VIN, ECM serial, vehicle identifiers
• Advanced hex editor with find/replace (hex or ASCII)
• Convert HPT format versions, unlock compatible files, rebuild and save
• Supports HPT custom OS IDs (69-prefix) with automatic OEM catalog mapping
• Send files to PAT dev support directly from the app

HPT ↔ BIN Conversion

• BIN → HPT and HPT → BIN (full file or per-segment)
• HPT → EFI Live BIN for L5P, LML, E86A, T87, T87A, A50
• CM2450 Cummins round-trip with separate 16-byte header file
• E41/A50/T87A sidecar support for valid EFI checksum output
• Built-in E86A EFI padding for 11–14 LML conversions

CTZ ↔ HPT / CTZ → BIN

• CTZ → HPT and HPT → CTZ (standalone, no HPT file required)
• CTZ → BIN with locked/encrypted v13+ CTZ support
• Supports 11–16 LML (E86A/E86B) and 17–23 L5P, plus GM TCM modules (T87, T87A, A50)

Segment Swap

• Copy selected segments from a donor HPT into a target HPT
• Ideal for transplanting calibration sections between compatible files

Search & Sort

• Folder Search — find .hpt/.ctz by OS, make, year, name, or cal name
• OS Sorter — batch organize files into nested folders (OS / Year / Make)
• Copy or move modes with progress tracking

ECU Patcher (Credit-Based)

• One-click automated patch pipeline: export → patch → checksum → import → segment swap
• OS auto-detected from loaded HPT; server-side patch catalog updates automatically
• DEF-reset bundle support on supported CAL IDs
• Currently supports OS: 12709842, 12709843 (more added via server updates)

ECU Unlock — GPEC Family

• Unlock GPEC2, GPEC2A, GPEC4, and ECO-Diesel calibration BINs
• Secure online unlock via PAT API with offline fallback

XDF Maker (Credit-Based)

• Browse and download XDF definitions matched to your file’s OS ID
• Works with OEM and 69-prefix custom OS IDs
• Re-downloads of owned XDFs are free

Stock Files Library

• Search and download stock .hpt, .ctz, .bin, and .vbf files from the PAT library
• Filter by make, module, OS, model, and keyword

Tools Tab

• Ford VBF → BIN: LZSS decompression, VBF 2.x/3.x. Platforms: MD1CP062, SPC5xx, TC38x, MG1CS
• Cummins XCAL/HEX → BIN: Auto-detects CM24xx vs CM2350B. Output: EFI Live, HP Tuners, Bench, Raw, or per-segment
• ECFG2XDF (Beta): Cummins ECFG to TunerPro/HP Tuners XDF with scalars, 1D arrays, and 2D tables
• J1939 DTC Converter: Embedded diagnostic trouble code conversion utility
• VIN2HEX / ASCII utilities
• Checksum calculators (LSuite PAT-themed + Delco support)

In-App Support

• Support tickets with ticket IDs and two-way messaging
• Attach files, receive developer replies inside the app
• Unread reply notifications

Supported Platforms

What’s Included

• HPT File Editor 2026 Windows installer (v3.8.1+)
• Per-machine license key (PAT-RSA1 online activation)
• Free in-app updates via built-in updater
• Access to PAT cloud services (XDF, patches, stock library, GPEC unlock API)

Note: XDF downloads and BIN patches use a separate credit balance inside the app.

System Requirements

• OS: Windows 10 or Windows 11 (64-bit recommended)
• Internet: Required for license verification, updates, XDF, BIN patcher, stock library, and GPEC unlock
• Disk space: ~100 MB + working space for tune files
• VCM Suite: 5.3+ (for HPT file compatibility)

Disclaimer

This software is intended for professional and advanced users. It does not replace HP Tuners software or licensing. For off-road, closed-course, research, or diagnostic use only. Always comply with all applicable laws and regulations.

Contact us via site chat or phone after purchase for installation and activation assistance.
