MERLO Telehandlers PDF Service Manuals | German (DE) | Hydraulic & Electrical Diagrams

MERLO Telehandlers PDF Service Manuals | German (DE) | Hydraulic & Electrical Diagrams

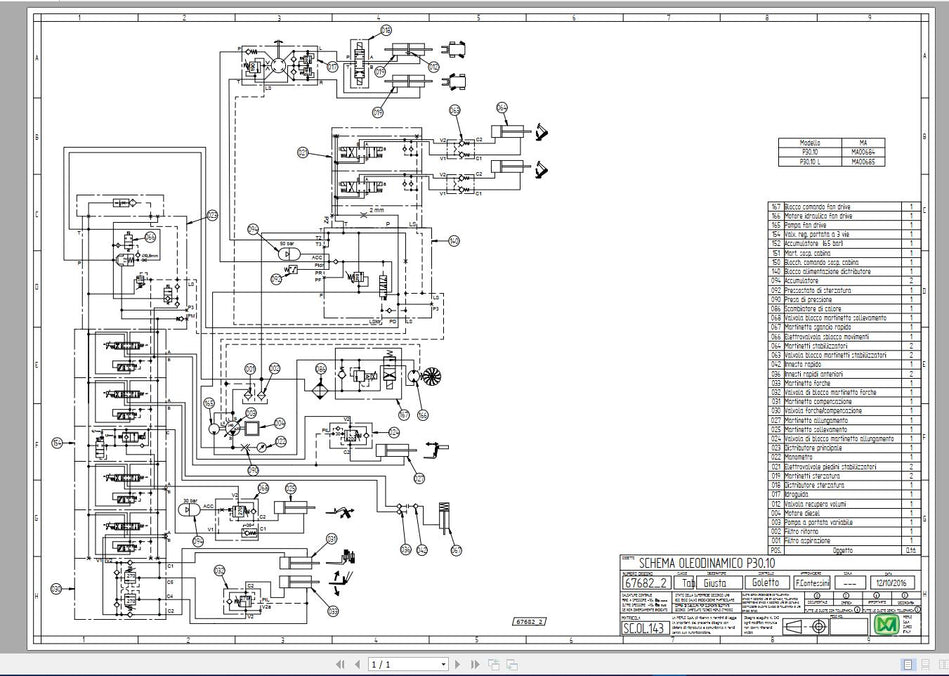

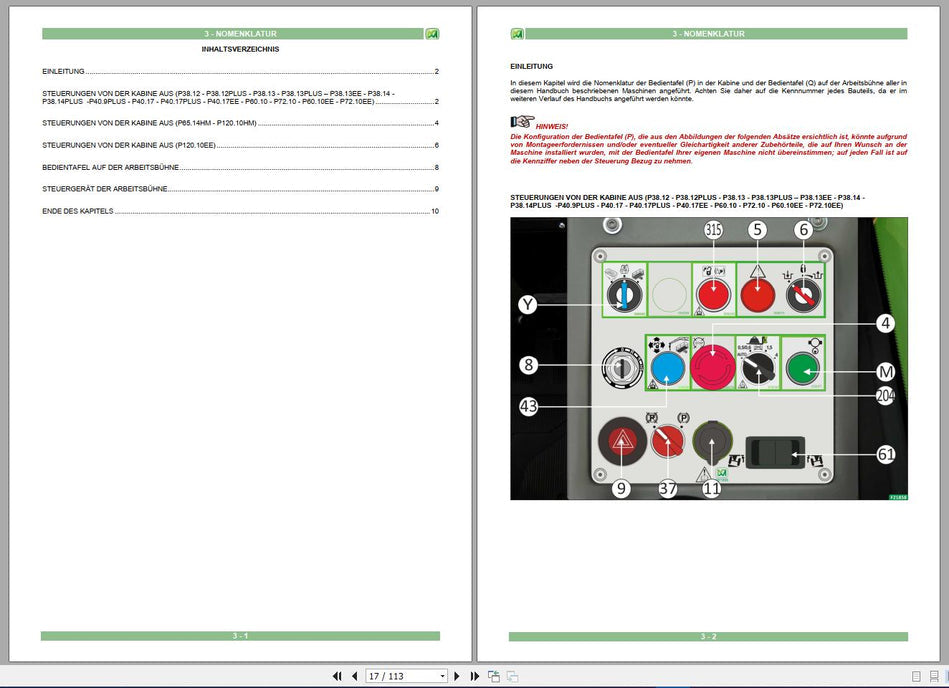

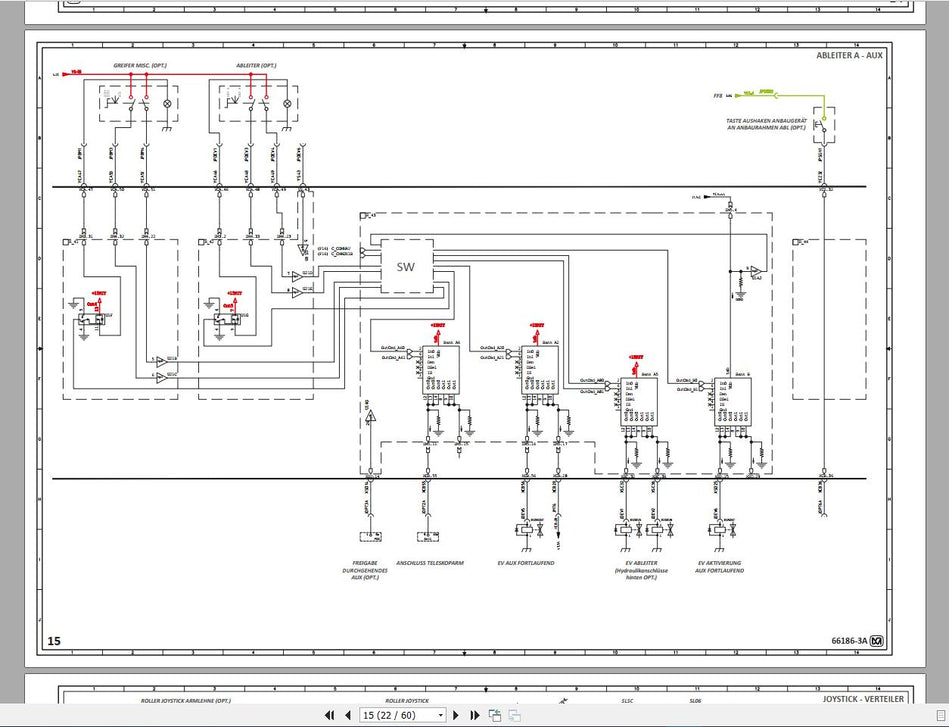

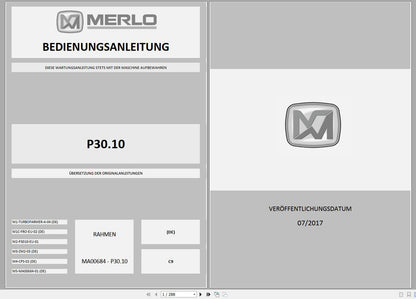

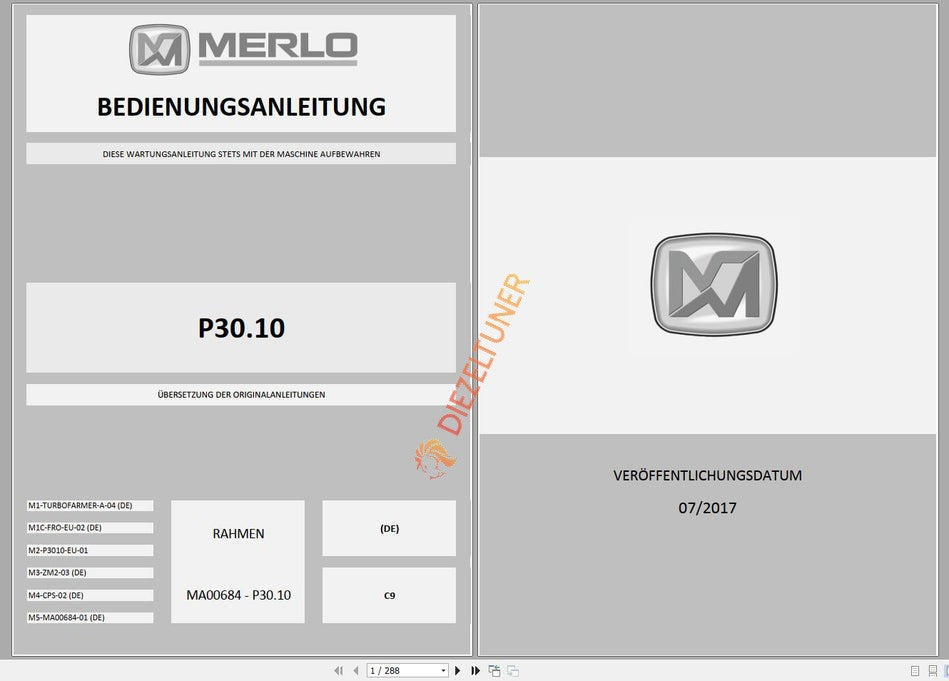

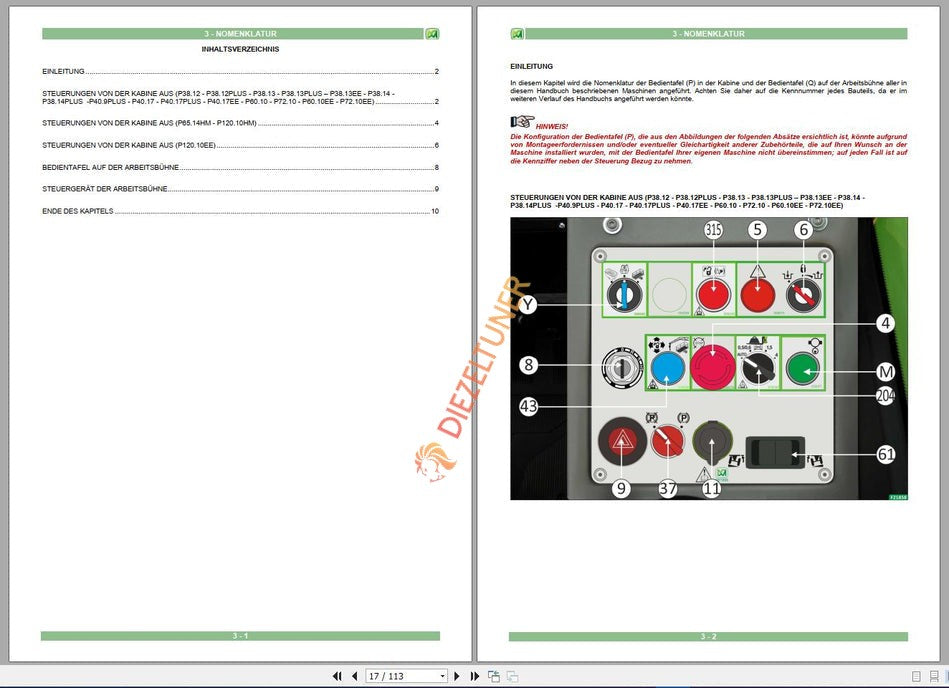

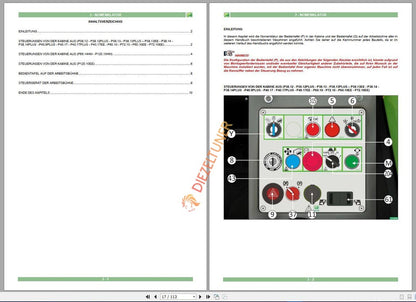

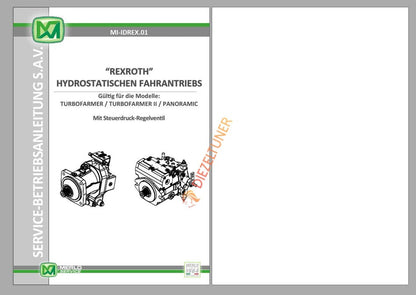

Comprehensive German-language service documentation package for Merlo telescopic handlers, rotating telehandlers, tracked carriers, concrete mixers, and tool carriers. Covers all major Merlo series with service manuals, mechanic manuals, hydraulic diagrams, and electrical wiring diagrams in PDF format.

🔧 Package Specifications

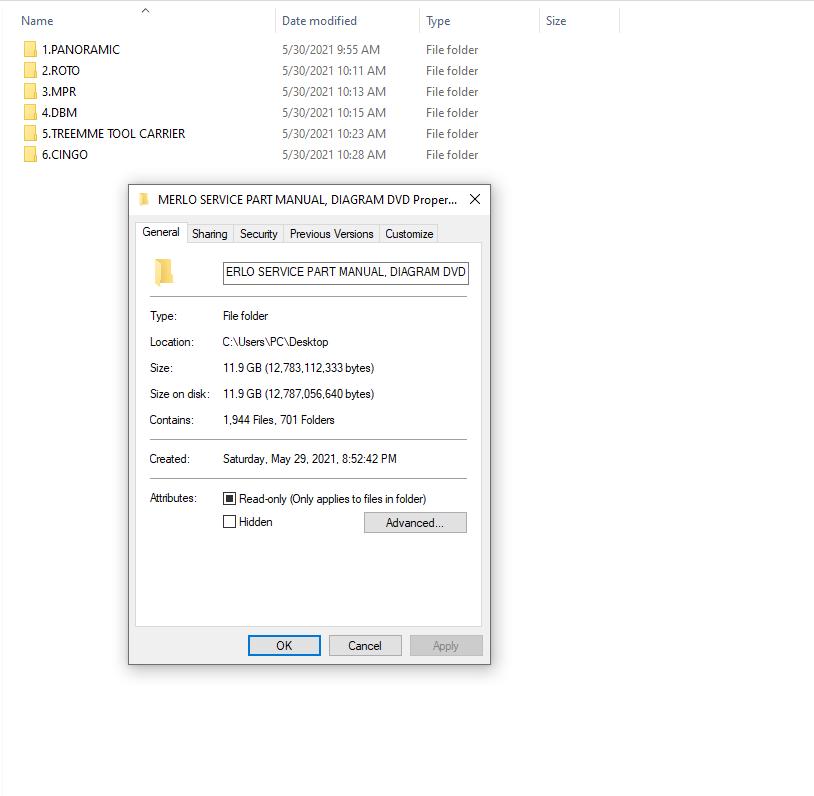

• 🔹 Package Size: 10 GB (compressed) — 11.9 GB uncompressed
• 🔹 Format: PDF — all files in WinRAR archives
• 🔹 Primary Language: German (DE) — some files include English (EN)
• 🔹 Compatible OS: Windows (all versions, 32-bit & 64-bit)

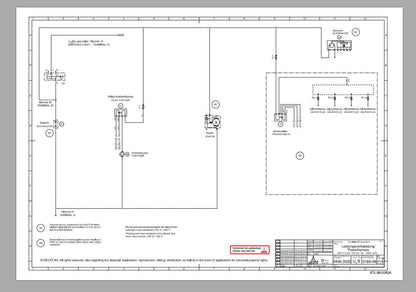

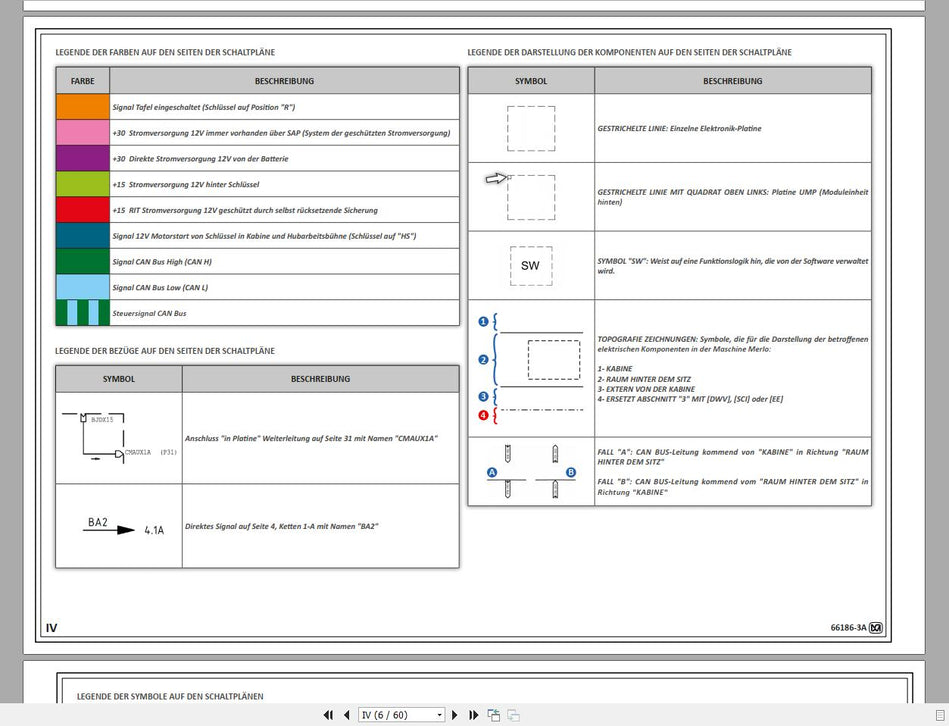

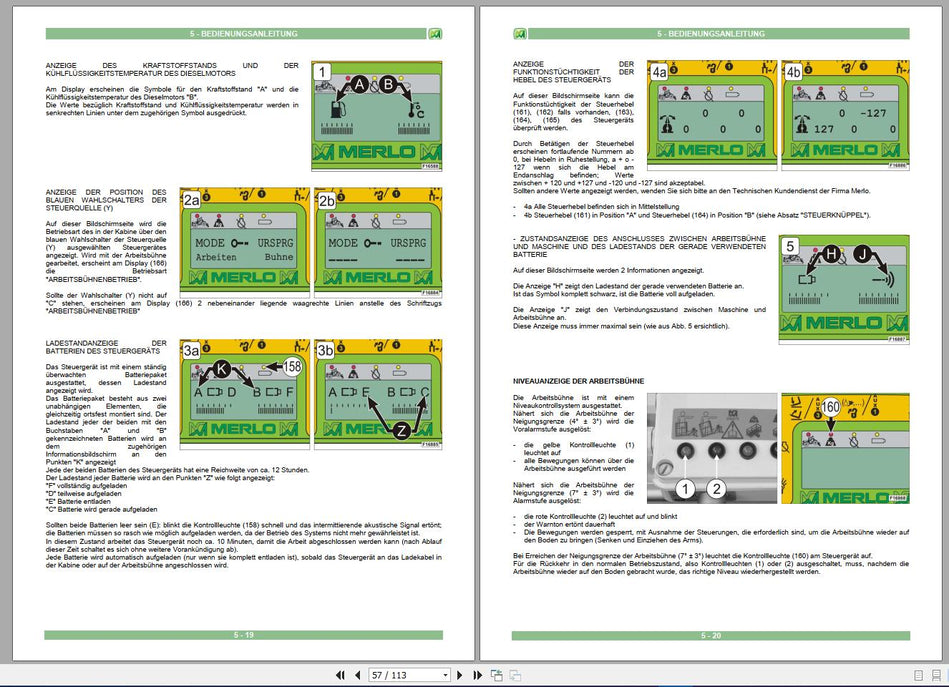

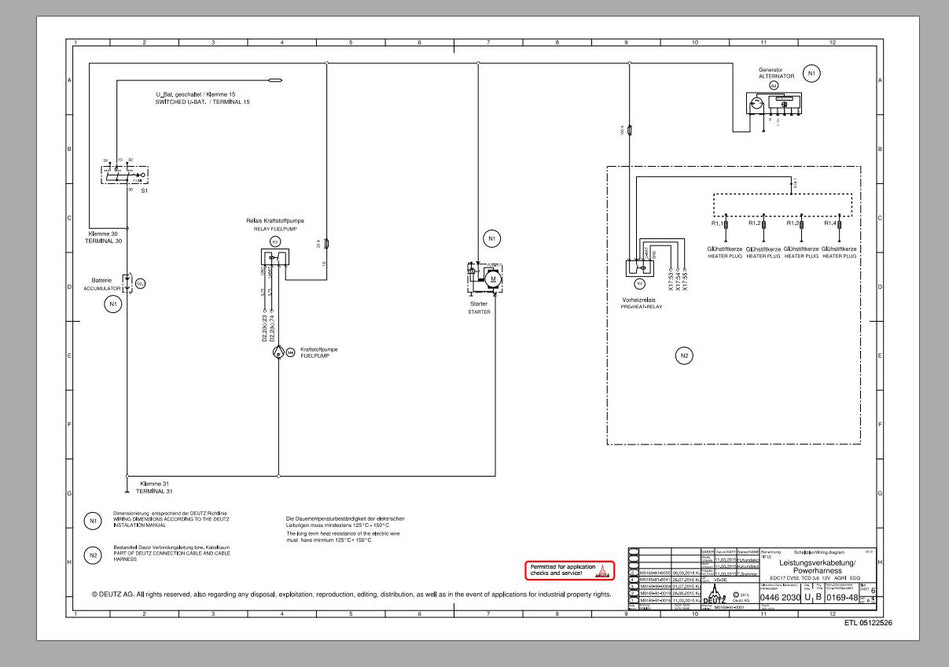

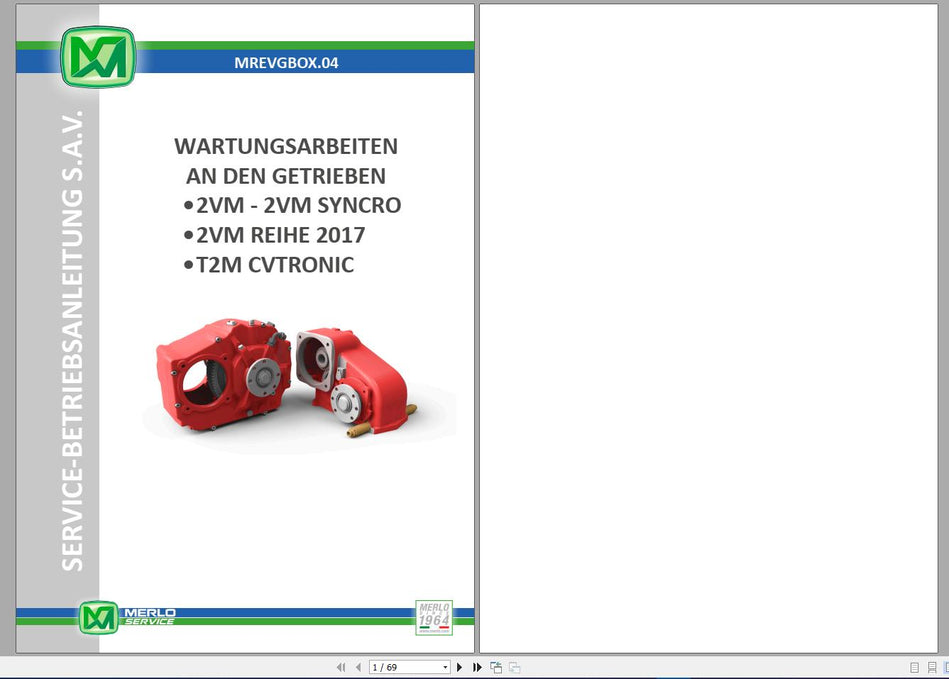

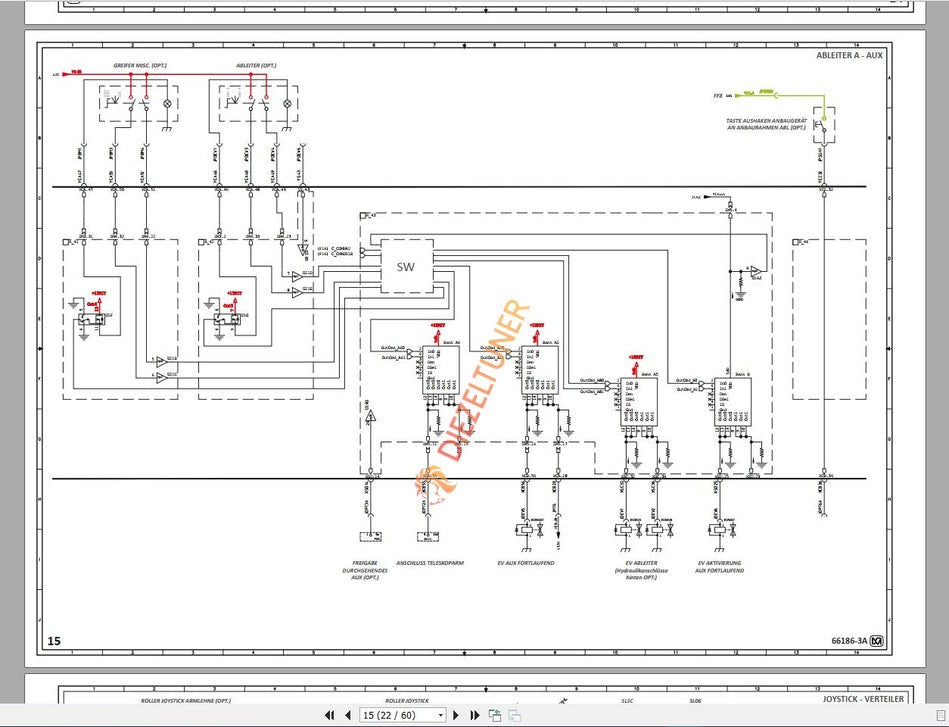

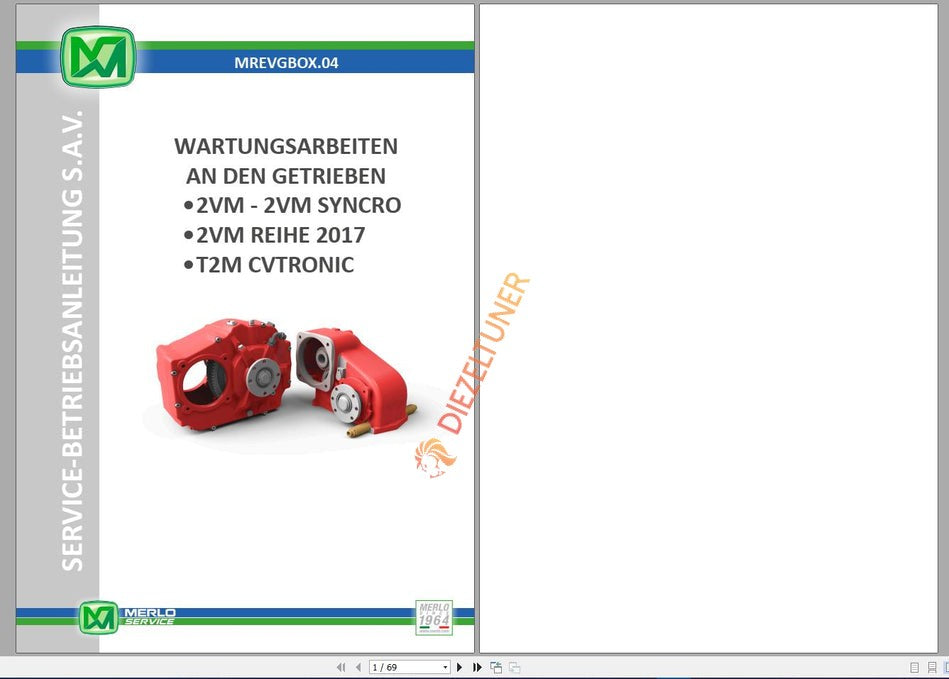

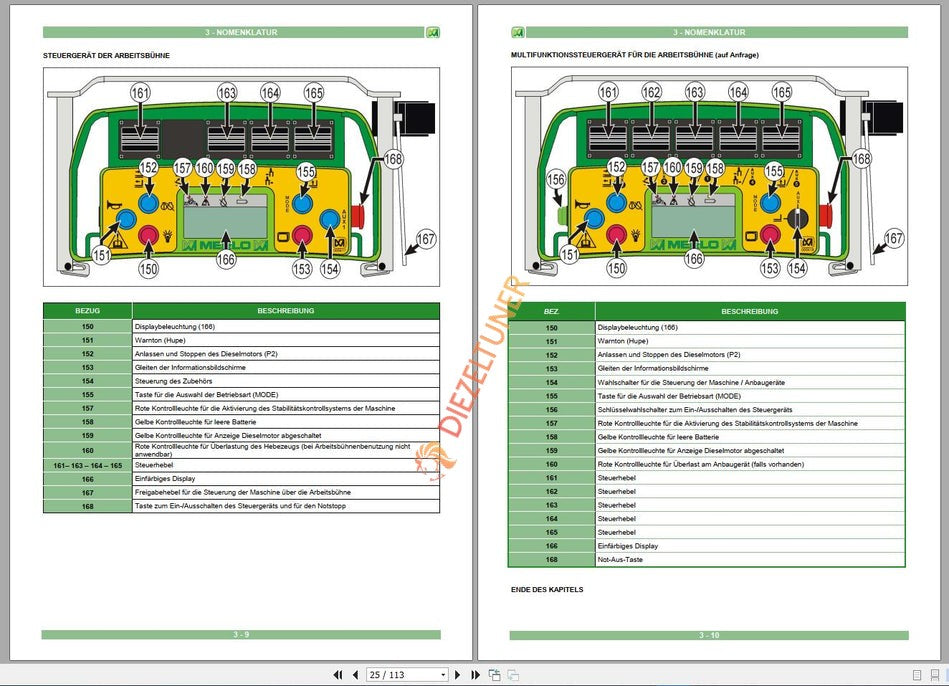

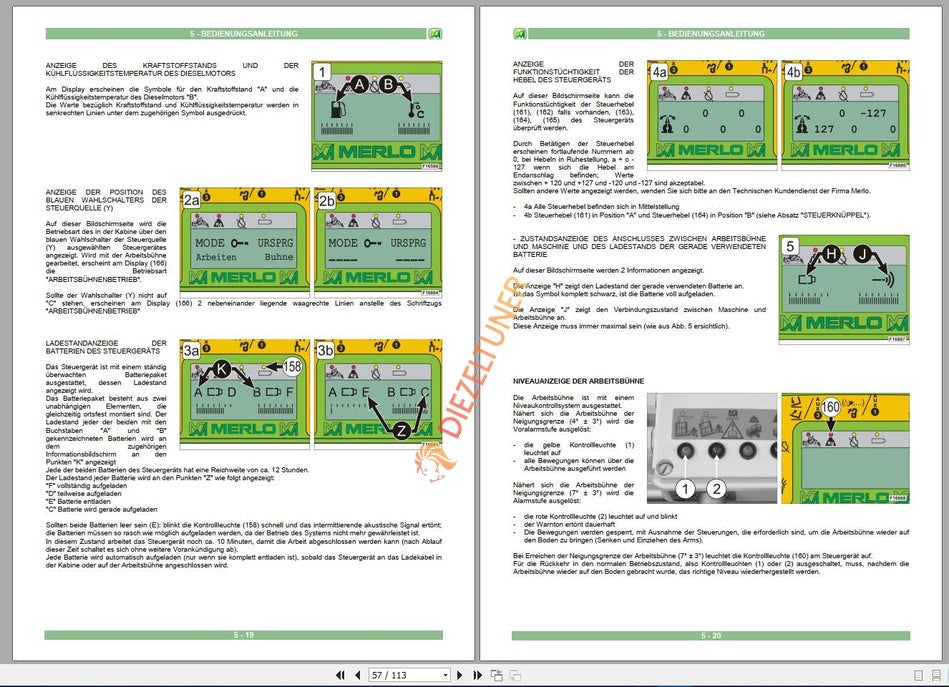

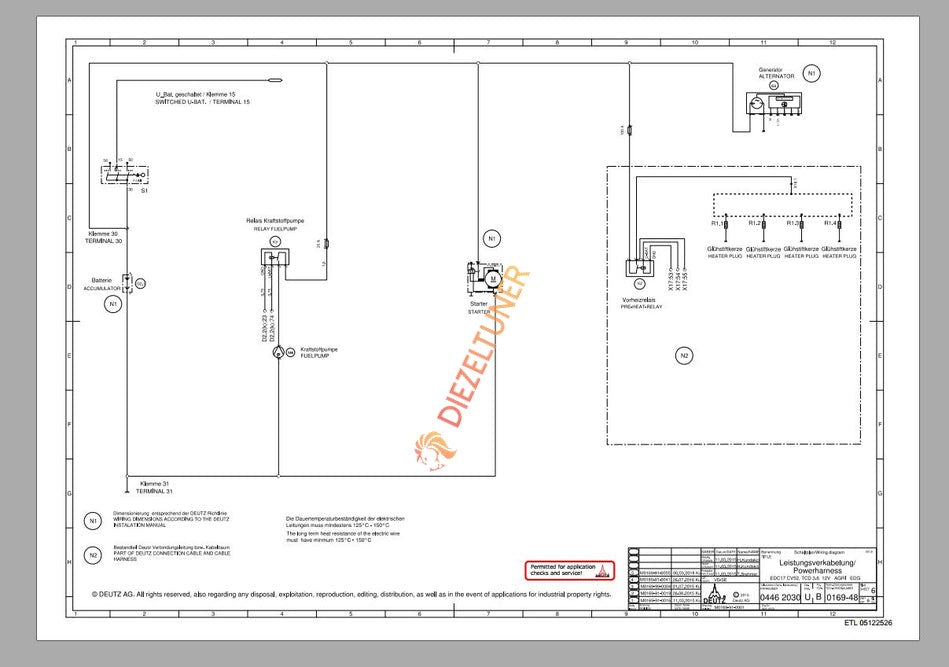

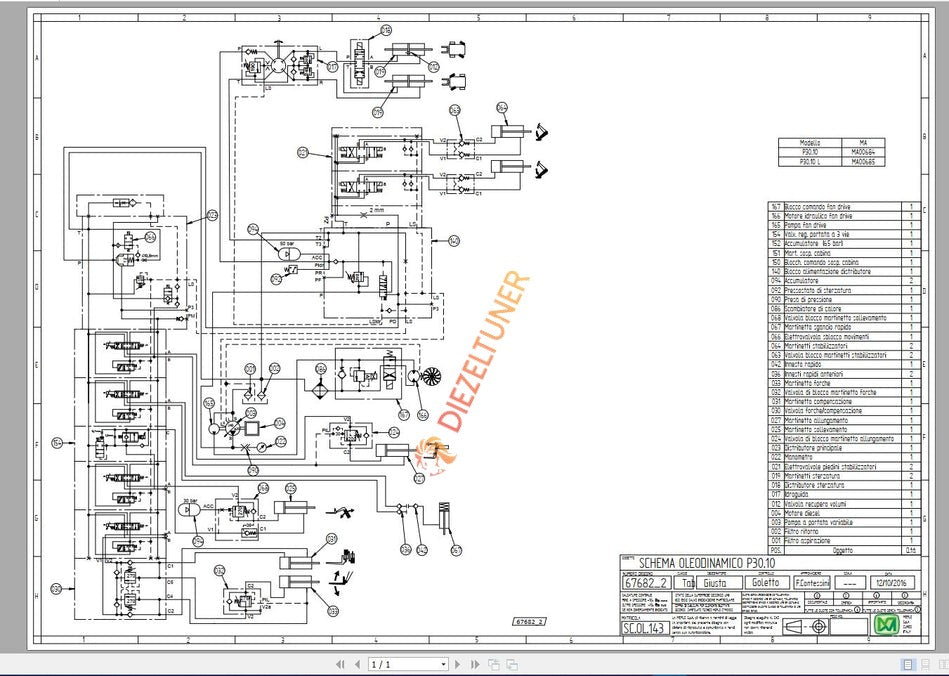

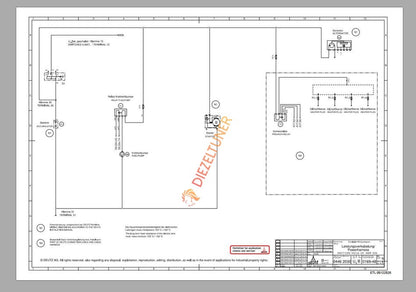

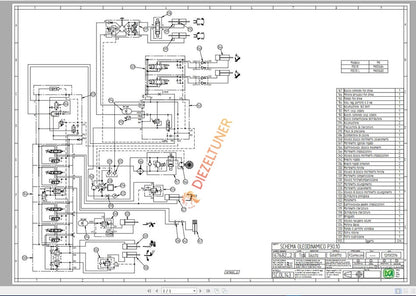

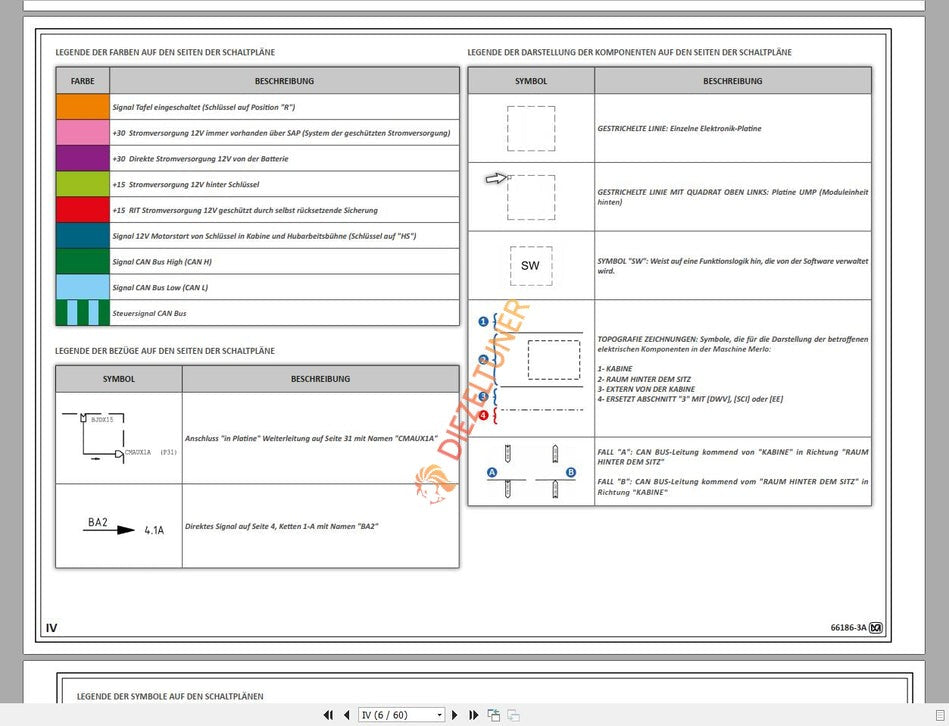

• 🔹 Document Types: Service Manual • Mechanic Manual • Parts Manual • Hydraulic Diagram • Electrical Diagram
• 🔹 Delivery: Instant download — high-speed link sent immediately after payment

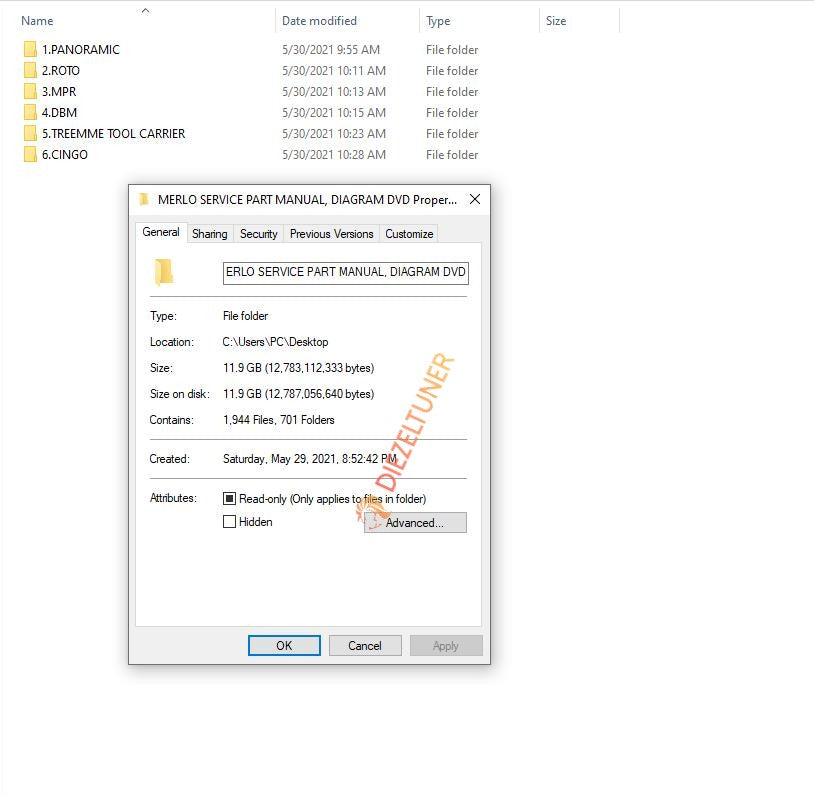

✨ Covered Merlo Series

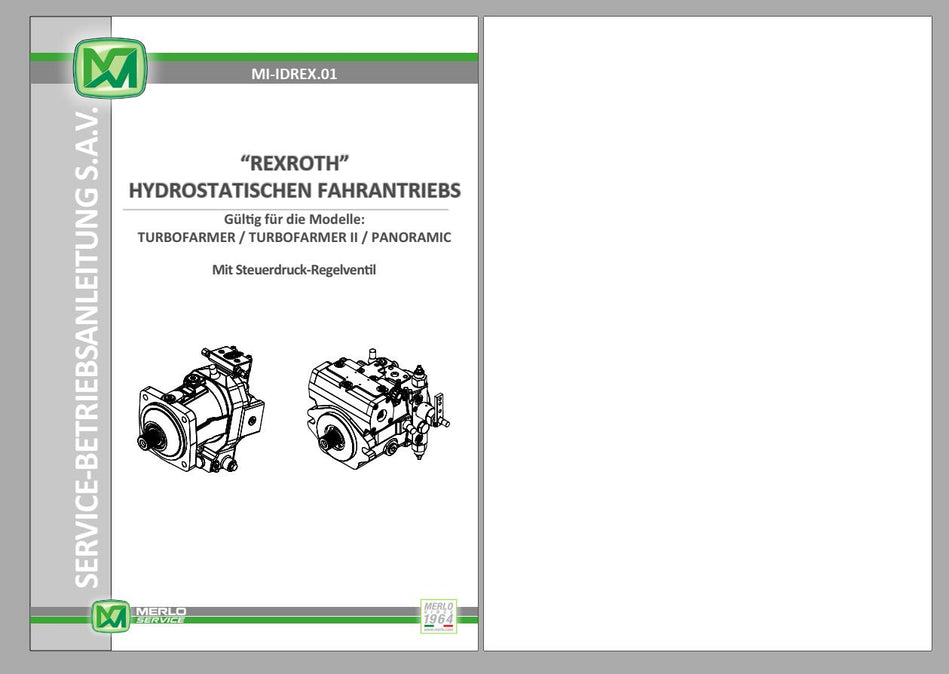

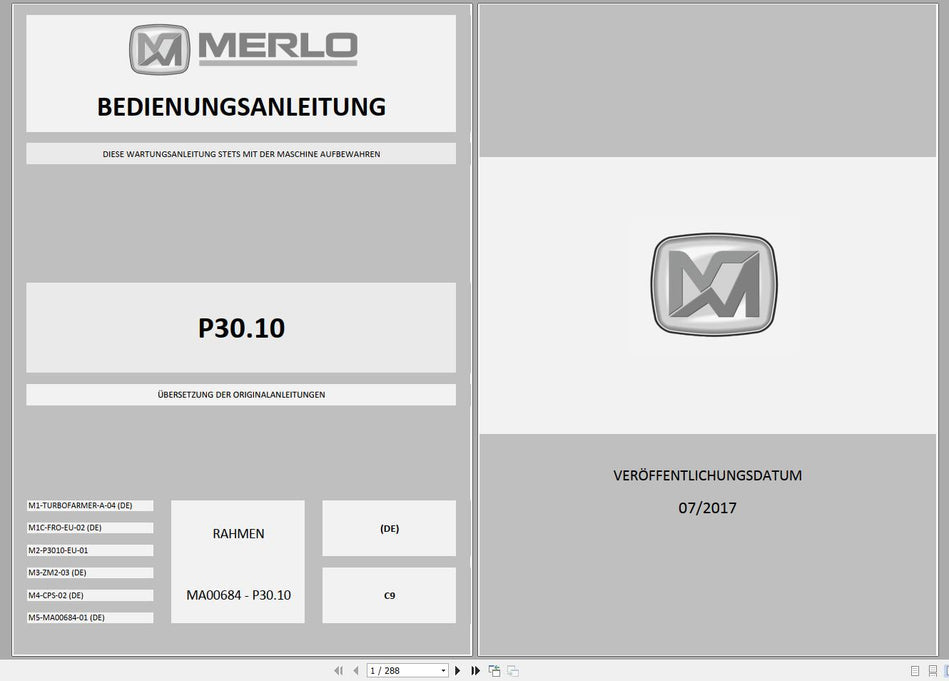

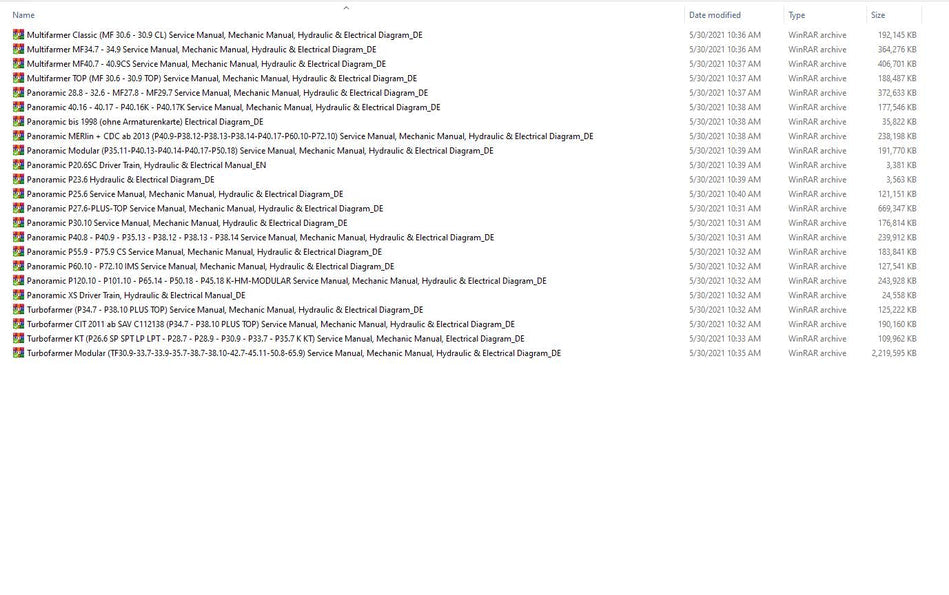

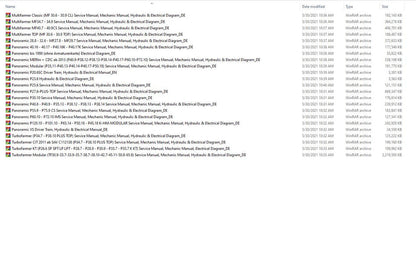

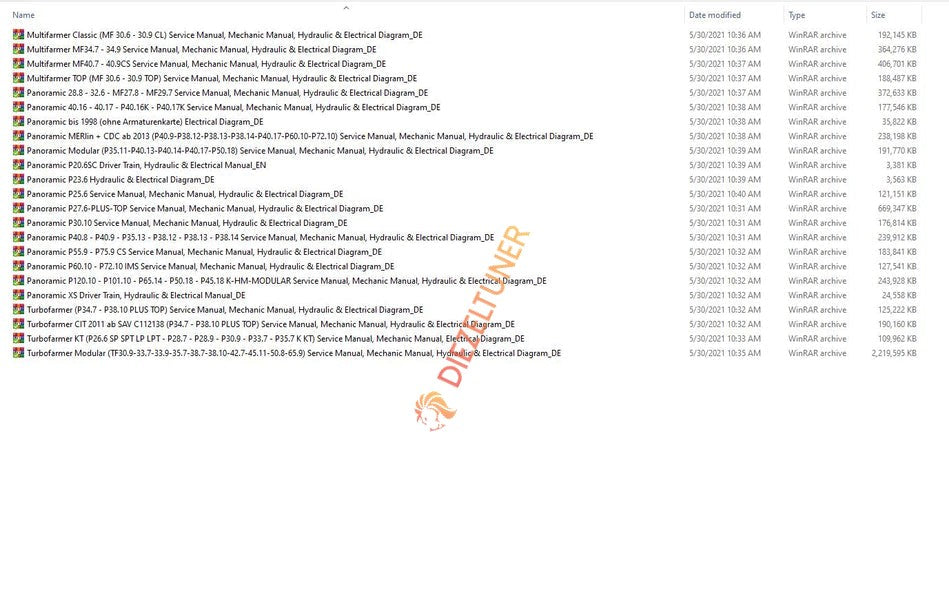

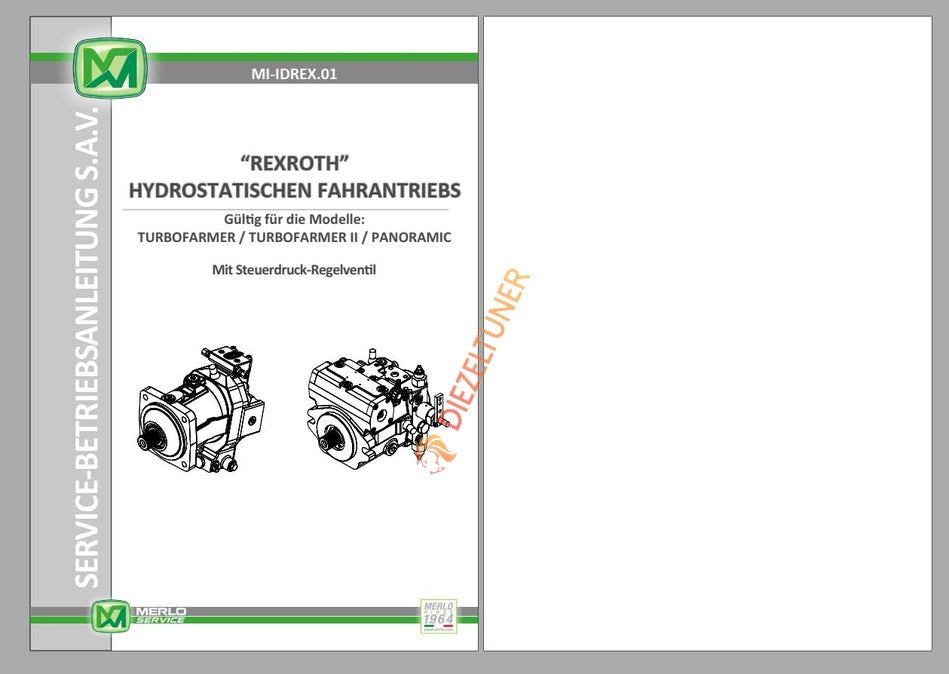

• 🔹 1. PANORAMIC — Multifarmer, Turbofarmer, Panoramic series (P20 to P120, all variants)

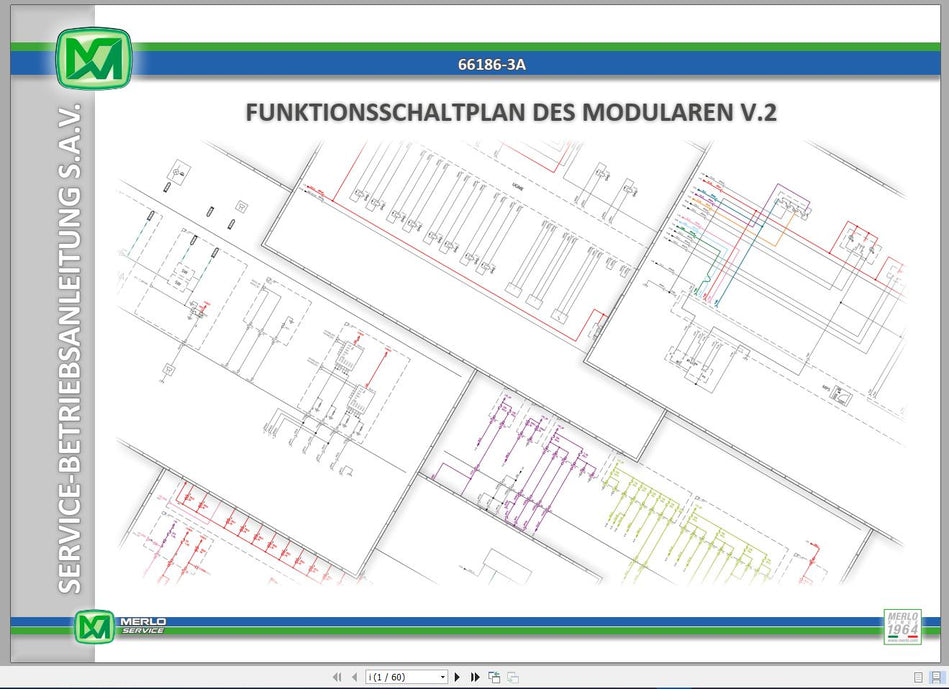

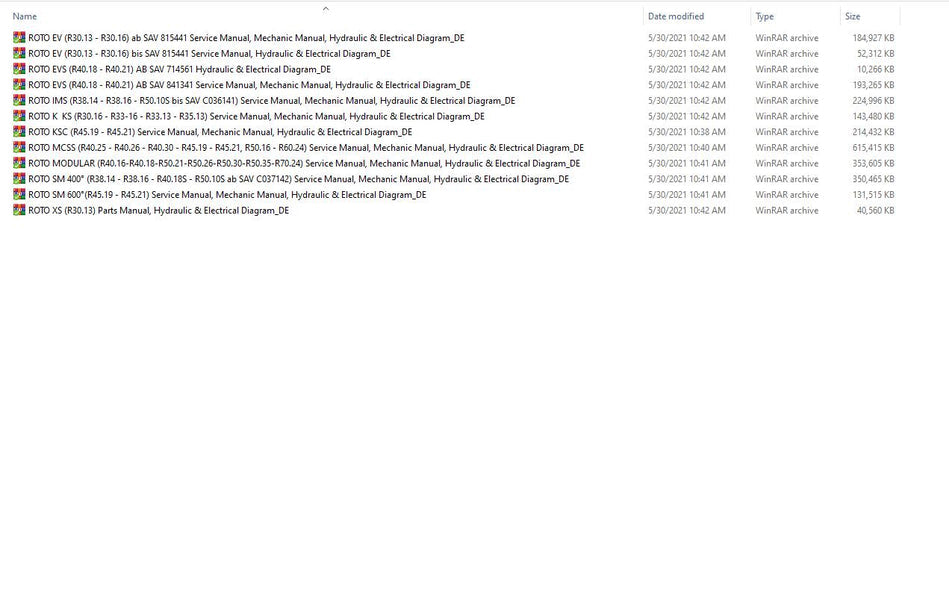

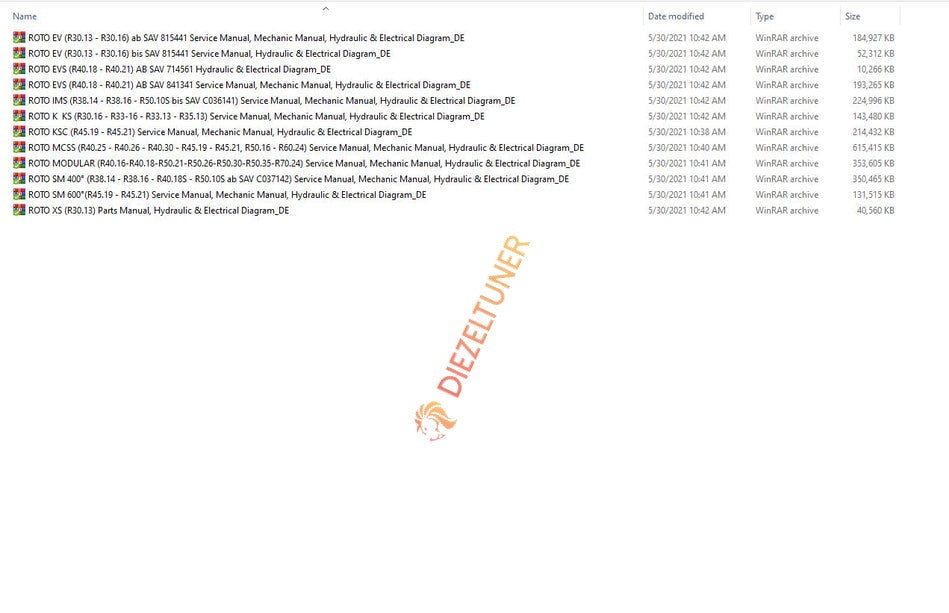

• 🔹 2. ROTO — Rotating telehandlers (R30 to R70, EV, EVS, IMS, KS, KSC, MCSS, MODULAR, SM 400°/600°)

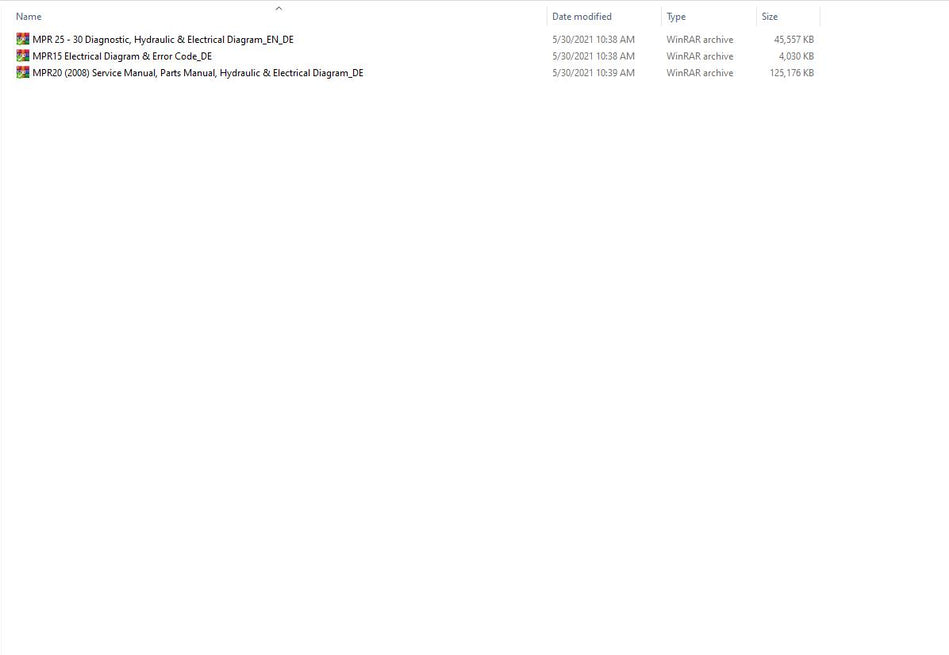

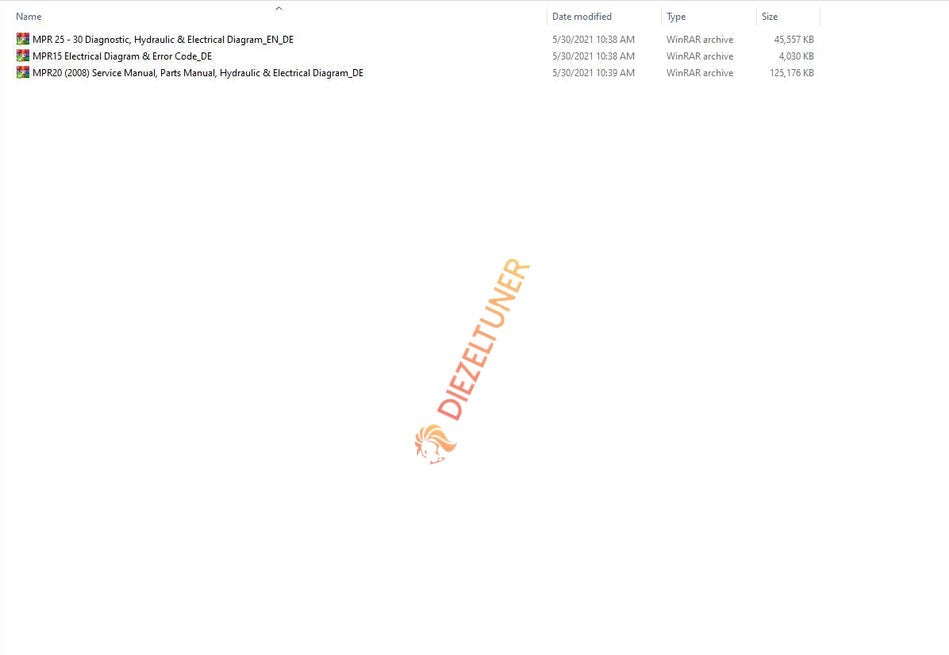

• 🔹 3. MPR — MPR15, MPR20, MPR25, MPR30 (service, parts, hydraulic & electrical)

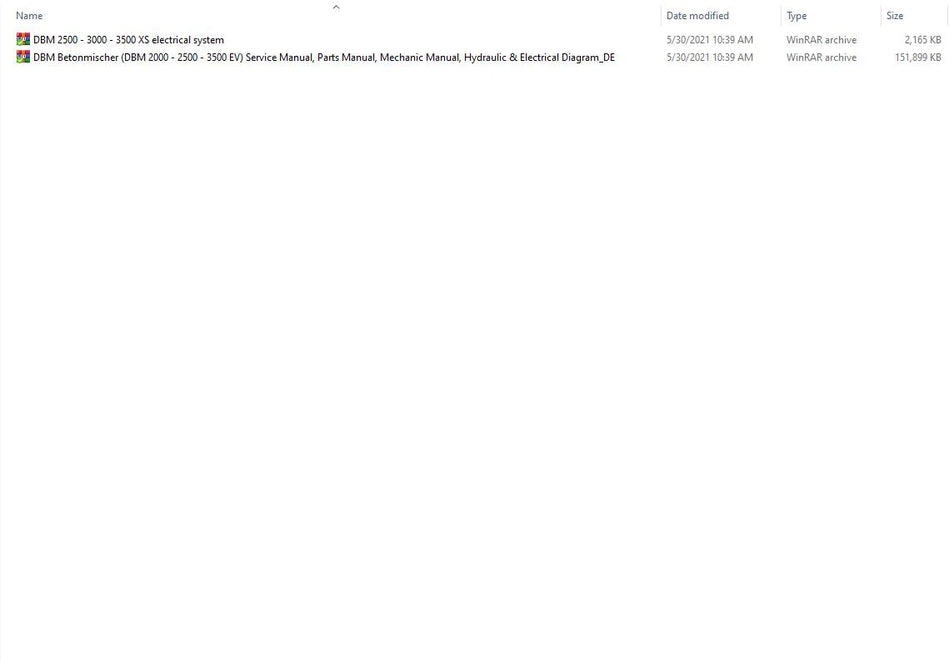

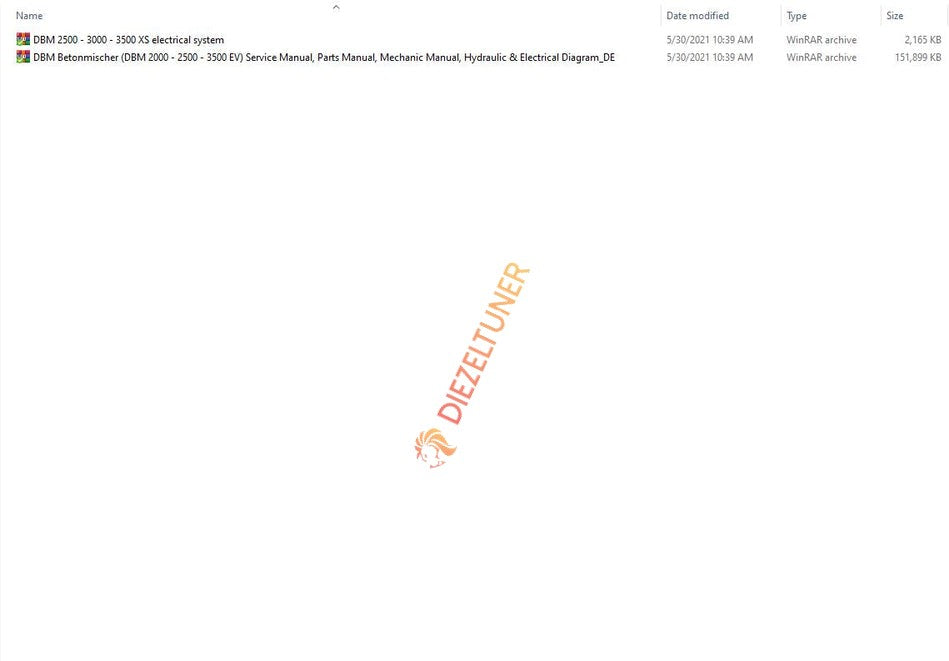

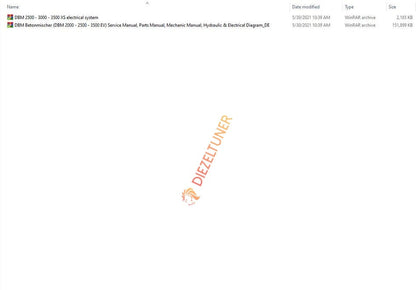

• 🔹 4. DBM — Concrete mixers DBM 2000, 2500, 3000, 3500 EV/XS

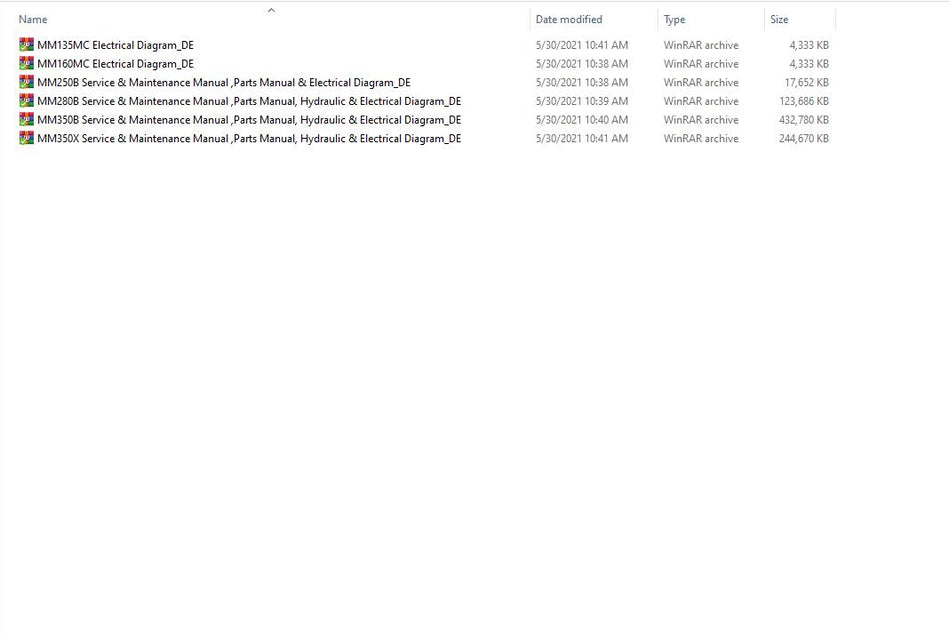

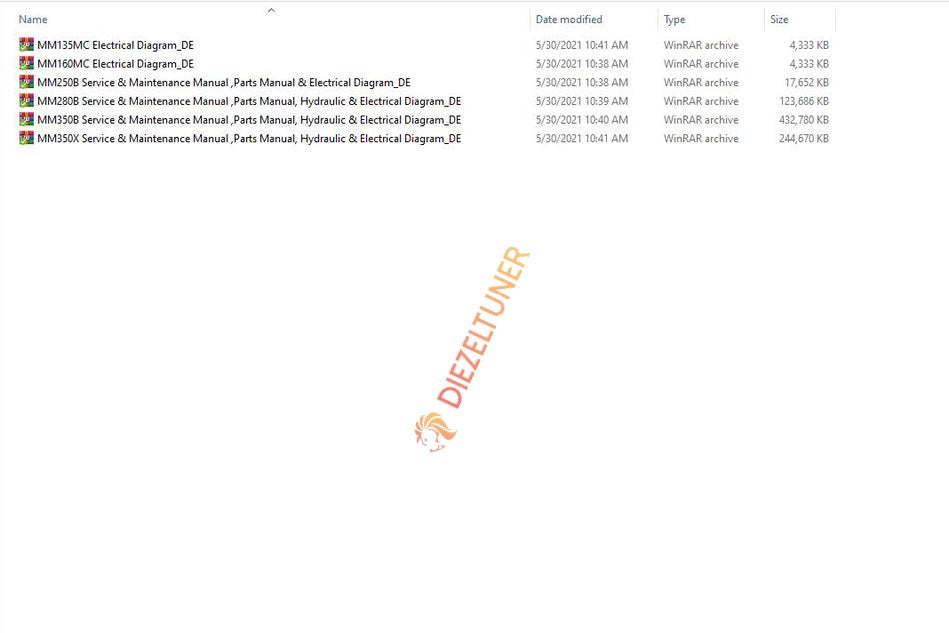

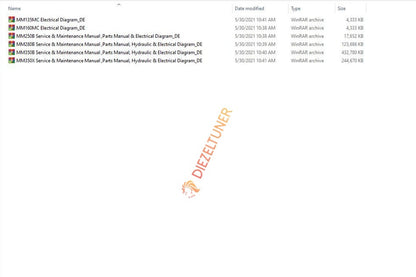

• 🔹 5. TREEMME TOOL CARRIER — MM135MC, MM160MC, MM250B, MM280B, MM350B, MM350X
• 🔹 6. CINGO — Tracked carriers Serie 1, 2, 3, EVO

🚜 Vehicle Types Covered

• 🔹 Telescopic handlers • Rotating telehandlers • Aerial platforms
• 🔹 Concrete mixers • Tracked carriers • Tool carriers
